PRO ONE
OVERVIEWS
The PRO ONE Passive DI is ideal for keyboard instruments, electronic drum pads, DJ equipment and media players. No batteries or +48V power supply are required, and a low distortion isolation transformer is built in.
DESCRIPTION
PRO ONE is a passive single-channel DI box. No need to install battery or provide phantom power to make it work.
PRO ONE has a built-in UNiKA-PROTM EI9AE3R3 1.25:1 isolation transformer, which has a special copper foil layer and a dedicated ground layer, which allows this device to restore high signal/noise ratio and dynamic sound, and can avoid unnecessary leakage caused by radio frequency interference, ground interference and potential difference. PRO ONE is particularly suitable for electronic musical instruments, recording studios and fixed installation projects that do not use mixers. It converts high-impedance signals into low-impedance balanced signals, which facilitates extending the wiring distance and blocking interference.

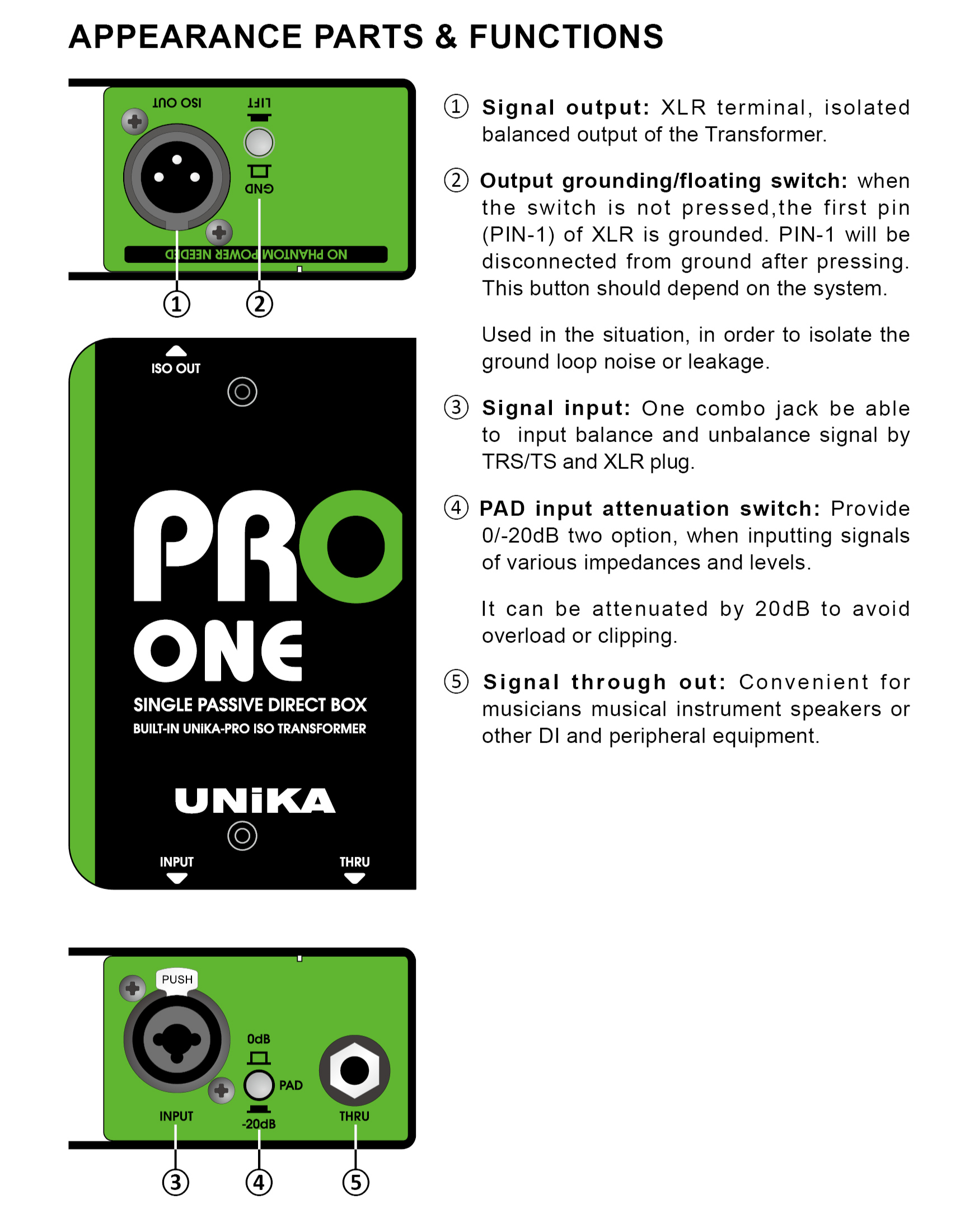

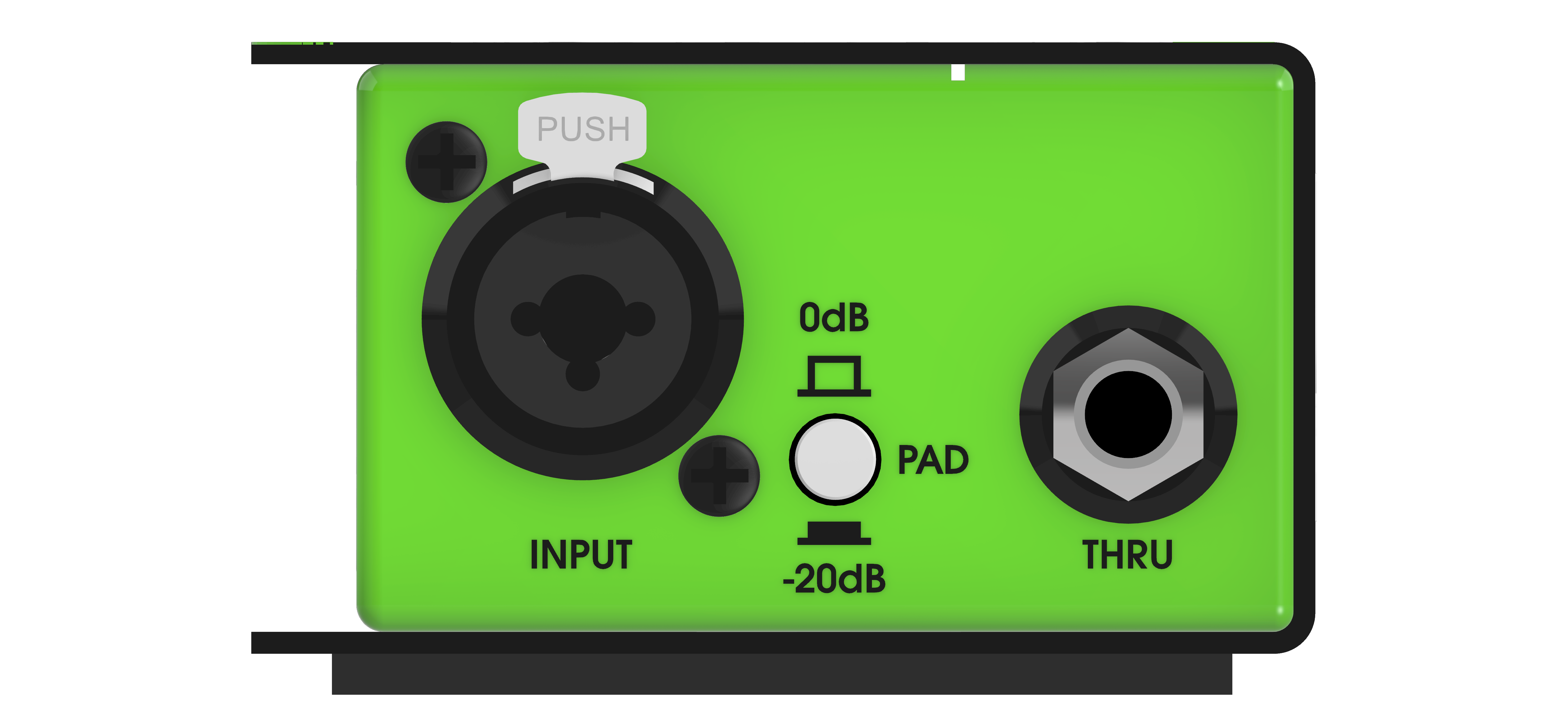

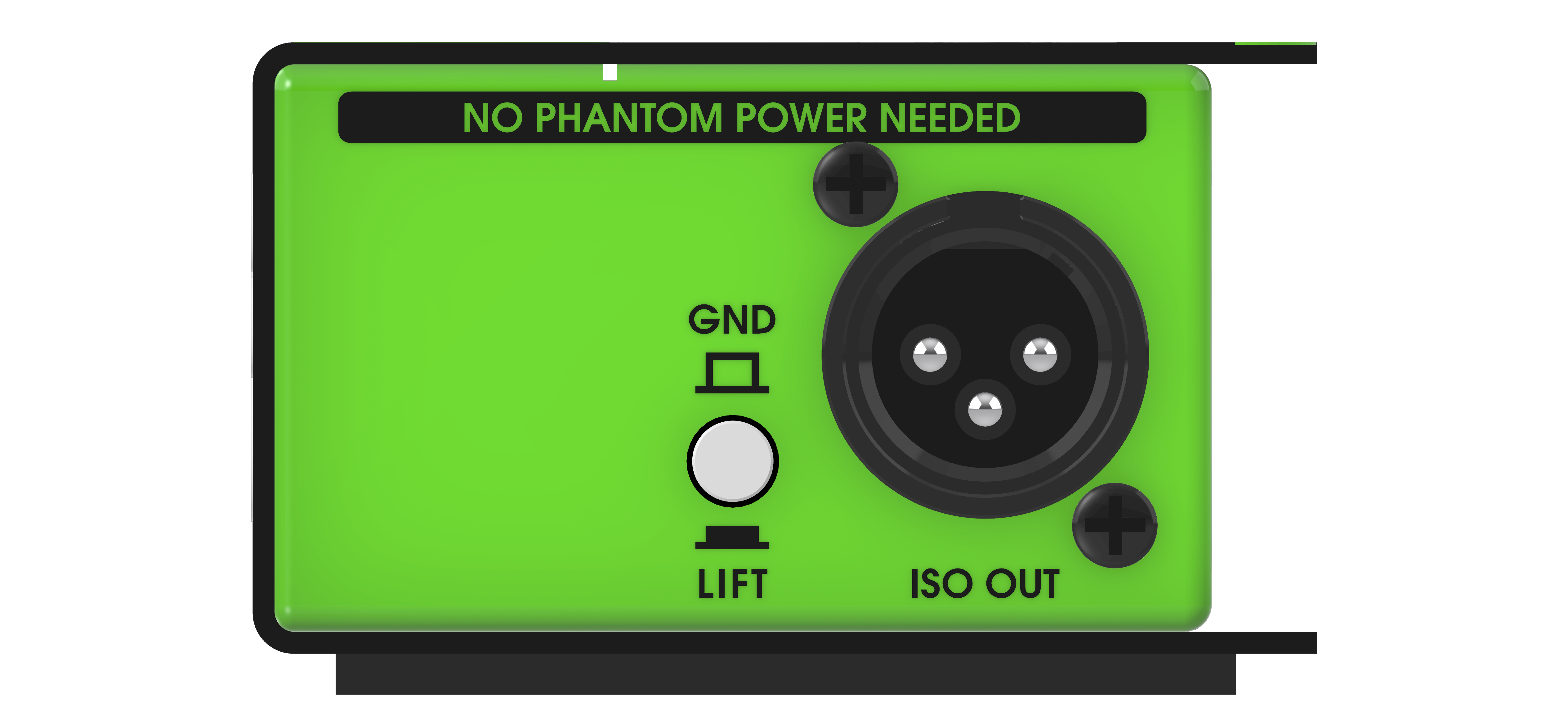

The PRO ONE uses a balanced/unbalanced combo socket on the input, and a TRS through out is convenient for musician to pass the direct signal to the instrument amplifier. In addition, it is equipped with a 0/-20dB attenuation switch, which is suitable for various types of audio signals with high and low impedance. The output terminal is also equipped with a GND/LIFT button to quickly eliminate ground noise.
PRO ONE has a built-in UNiKA-PROTM EI9AE3R3 1.25:1 isolation transformer, which has a special copper foil layer and a dedicated ground layer, which allows this device to restore high signal/noise ratio and dynamic sound, and can avoid unnecessary leakage caused by radio frequency interference, ground interference and potential difference. PRO ONE is particularly suitable for electronic musical instruments, recording studios and fixed installation projects that do not use mixers. It converts high-impedance signals into low-impedance balanced signals, which facilitates extending the wiring distance and blocking interference.
The PRO ONE uses a balanced/unbalanced combo socket on the input, and a TRS through out is convenient for musician to pass the direct signal to the instrument amplifier. In addition, it is equipped with a 0/-20dB attenuation switch, which is suitable for various types of audio signals with high and low impedance. The output terminal is also equipped with a GND/LIFT button to quickly eliminate ground noise.
FEATURES
- Built-in UNiKA-PROTM EI9AE3R3 1.25:1 isolation transformer
- The input socket uses Combo jack
- Use TRS jack as through out terminal

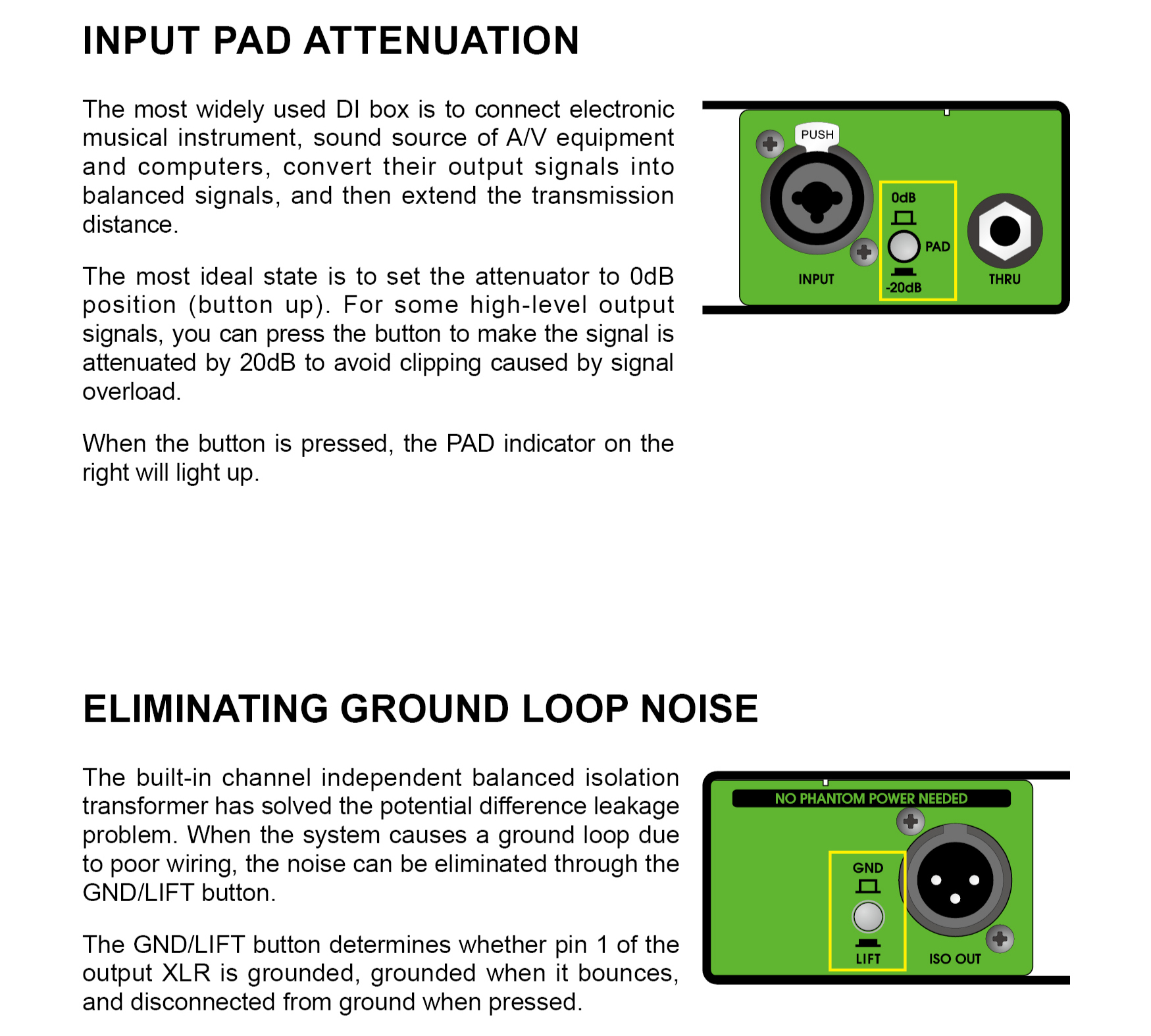

- There is 0dB/-20dB input signal attenuation switch
- The output is equipped with a GND/LIFT switch
SPECIFICATIONS
| PRO ONE | |||
|---|---|---|---|
| Circuit principle | Passive/Transformer balance output | ||
| Input connector | 1 x Combo | ||
| Thru connector | 1 x TRS | ||
| Input pad switch | 0/-20dB push button | ||
| Output connector | 1 x Male XLR through ISO Transformer | ||
| Output GND/LIFT switch | Push button | ||
| Input impedance | 1KΩ / 0dB & -20dB | ||
| Output impedance | 50Ω | ||
| Max. input level before clipping | +22dB | ||
| Max Output level | +22dB | ||
| Frequency response | 20Hz-20KHz, -0.3/+0dB | ||
| S/N ratio @20Hz~20KHz un-weight | >120dB | ||
| T.H.D. @1KHz 0dBV output | <0.02% | ||
| Transformer Ratio | 1.25:1 | ||
| Chassis | 1.6mm/1.2mm steel cabinet and chassis | ||
| Surface finished | Durable complex painting | ||
| Dimension (W x D x H) | 78 x 124 x 46 mm | ||
| Weight | 0.55Kg | ||
| Shipping weight | 0.58kg | ||
| Packing per carton | 20pcs/12.20Kgs | ||
| Shipping dimension per carton | 305 x 283 x 195mm | ||
